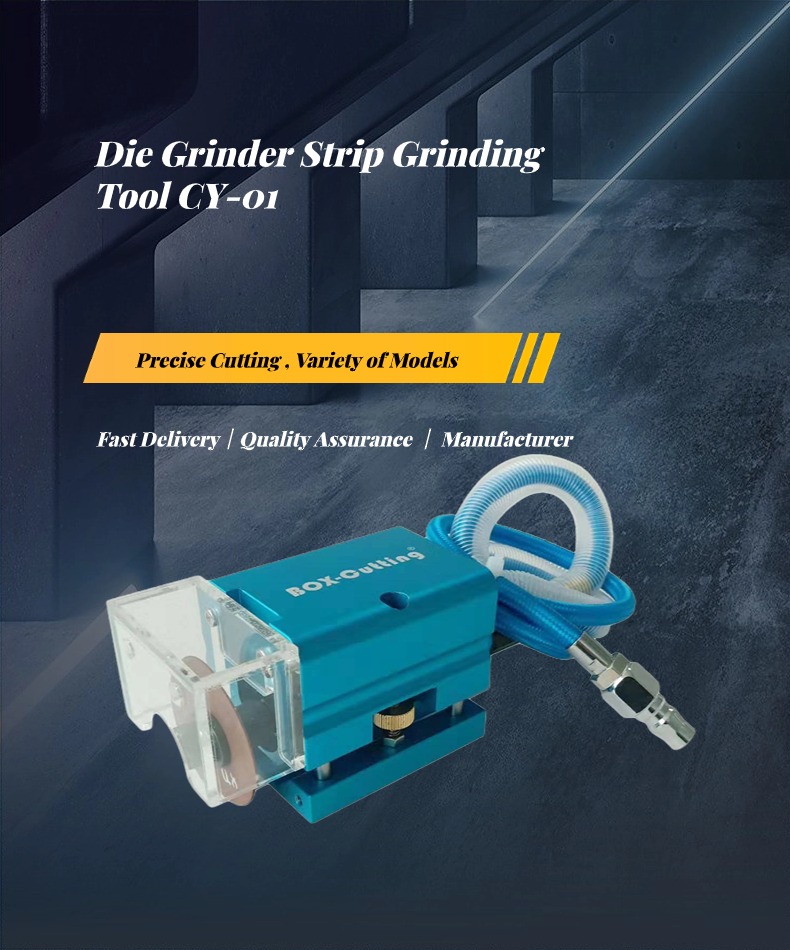

Portable pneumatic cutting machine Nick Grinder Groove Grinding Machine for Carton Flat Die Cutting

Application

1,The machine is used for cardboard, corrugated paper, color printing, knife mold line,to die cut various width,depth connection point. Precisely work in printing and die cutting industry, etc.
2,It replaces the traditional hammer tapping method, does not hurt the blade, no burrs, no deviation, convenient and fast, increases the service life of the knife die.
3, Four-corner V-shaped positioning, there will be no larger or smaller connection point.
4, The thickness of the grinding wheel can be replaced according to product requirements to achieve the perfect effect.
5, Simple operation, precisionly die cut connect point.

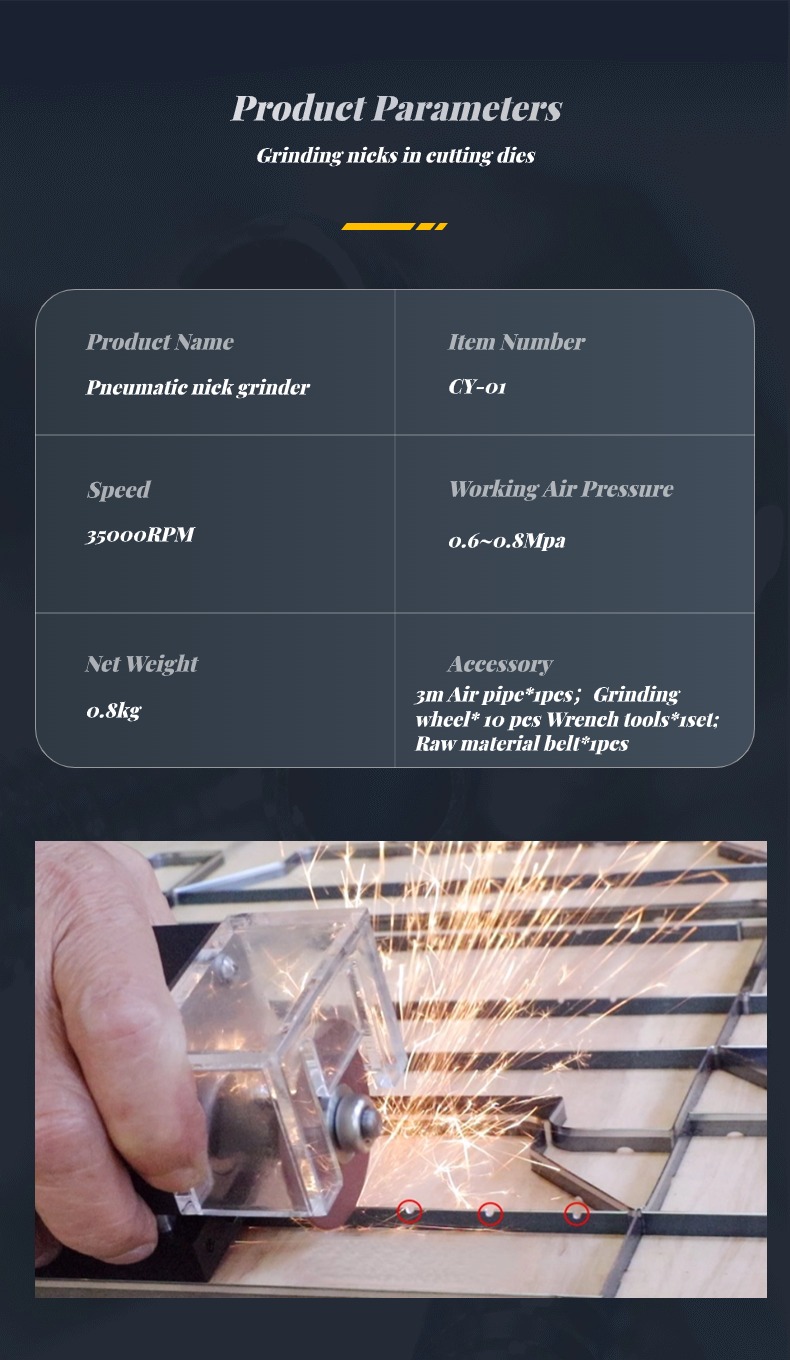

Specifications

Speed: 35000 R/min

Working type: Pneumatic

Working pressure: 0.6-0.5MPA

it come with 5pcs Grinding wheel（thickness）: 0.3mm, 0.5mm, 0.7mm, 0.8mm, 1.0mm, 1.2mm, 2.0mm , each sizes one pcs

- Different depth of nicks can be obtained by adjusting the control screw

- The depth of nick should be determined by cutting-dies, otherwise, will cause abnormal wear on the grinding wheel.

- The switch on the tail of the device can control the speed of motor, and it can control the motor start or stop as well.

- When grinding nicks, use locating-device to position the machine on the top of cutting rules, then press the grinding wheel towards the blade of cutting rules stably and quickly.

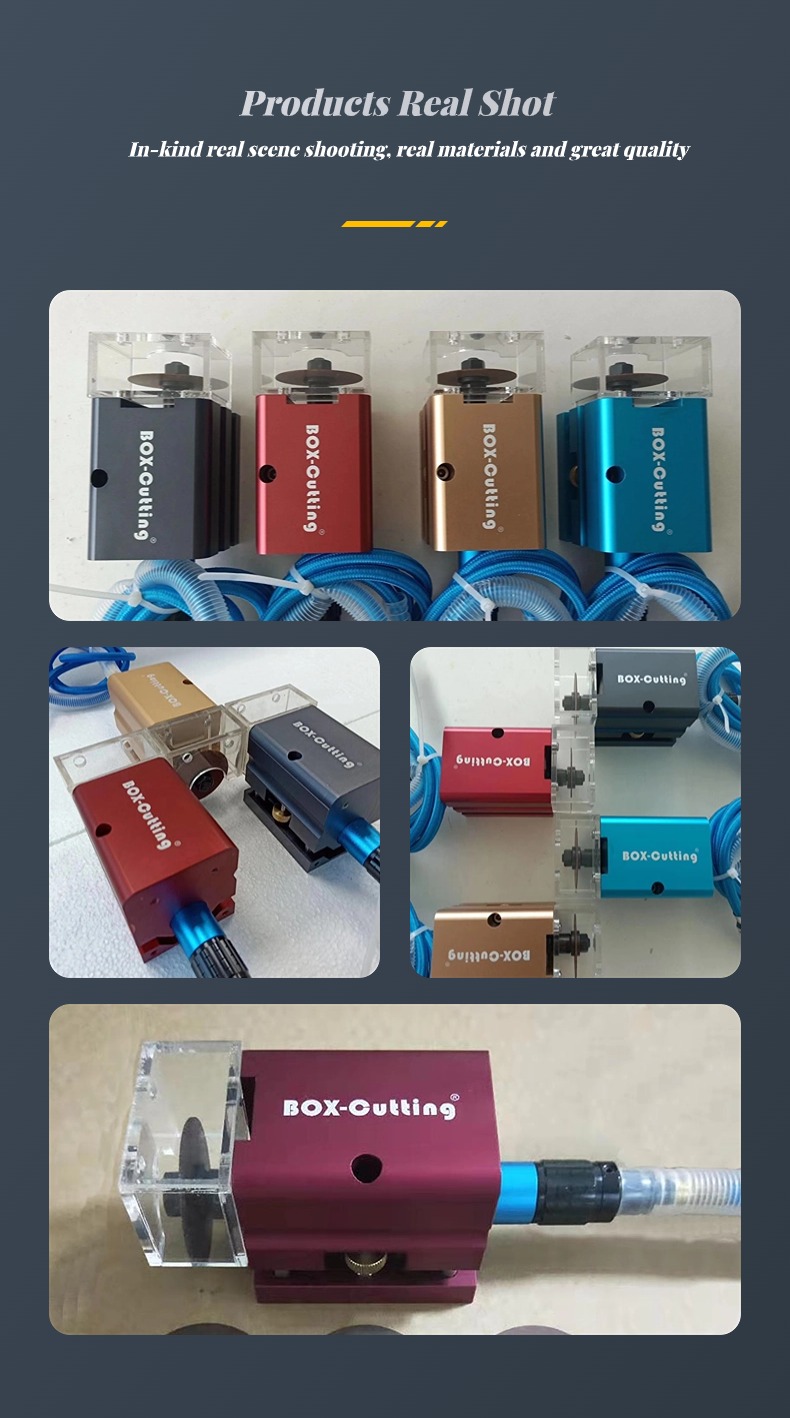

Pictures Show
