Carton Waste Stripping Machine Maintenance

In the high-stakes, fast-paced environment of modern corrugated packaging production, every machine is a critical link in the chain of profitability. The stripping machine, particularly a high-performance model like the Chaoyai HW-1080, stands as a pivotal workhorse, transforming die-cut sheets into clean, ready-to-fold box blanks. Its reliability directly impacts throughput, quality, and bottom-line results. Yet, its consistent performance hinges not solely on its sophisticated initial engineering but on a factor far more mundane yet profoundly crucial: disciplined, frequent maintenance. This article presents an urgent and detailed case for instituting a strict 2-to-3-day maintenance regimen, outlining not just the "how" but, more importantly, the compelling "why." Neglecting this regimen is not an option; it is a direct invitation for catastrophic failure, unplanned downtime, and significant financial loss.

The recommendation for maintenance every 48 to 72 hours is not arbitrary. It is calculated based on the intense operational profile of these machines. A stripping machine operates in a hostile environment filled with paper dust, abrasive micro-particles from corrugated board, and constant mechanical stress from high-impact stripping actions. These elements accelerate the degradation of lubricants and expose critical components to wear and corrosion at a rapid rate. Waiting for weekly or "whenever there's time" maintenance is a gamble where the odds are overwhelmingly stacked against the machine owner. The risks of deferred maintenance are severe, specific, and costly:

Catastrophic Chain Failure: The drive chain is the literal transmission of power from the motor to the stripping mechanism. Operating under high tension and load, it requires a consistent film of oil to reduce metal-on-metal friction. Without fresh lubrication every 2-3 days, the existing oil film becomes contaminated with paper dust, forming a grinding paste. This drastically increases friction, causing the chain to overheat, elongate, and lose its temper. The result can be a sudden, violent chain snap or derailment. This failure is not a simple fix; it necessitates a full production stop, disassembly, and replacement, leading to hours if not days of lost production and expensive repair bills.
Progressive Gear Wear and Seizure: Intermeshing gears, such as those in the drive train or adjustment mechanisms, are precision components. Like the chain, they rely on lubrication to maintain a protective film between their teeth. The abrasive contamination that sets in after a few days of operation acts like sandpaper, causing premature and accelerated gear wear. As the gear teeth wear down, backlash increases, precision is lost, and stripping quality deteriorates. In a worst-case scenario, excessive wear or lack of lubrication can lead to gear seizure—a complete locking of the mechanism. This sudden halt not only stops the machine but can cause cascading damage to shafts, bearings, and motors, resulting in a complex, multi-component repair.
Corrosion and Rust in the Rotary Union (Rotor): This is perhaps the most insidious risk. The rotary union, or "rotor," is the critical component that transmits compressed air from a stationary inlet to the rotating stripping head. It contains precise, finely machined internal surfaces and seals. Compressed air, as it is generated, contains moisture (water vapor). If this moist air is introduced directly into the rotor without proper conditioning, the moisture condenses inside the component. Without frequent purging and lubrication, this standing water leads to internal corrosion and rust. Rust particles break loose, scoring the polished internal surfaces and damaging seals. This leads to air leaks, loss of pneumatic pressure, and ultimately, a complete failure of the stripping head to actuate. Replacing a corroded rotary union is a specialized and costly repair that is entirely preventable.

The economic argument is clear: the 10-minute investment in preventive maintenance every 2-3 days is a trivial cost compared to the thousands of dollars in parts, labor, and lost production from any one of these failures. Maintenance is not an expense; it is the most profitable insurance policy a plant manager can buy.

Executing the 3-Step Manual Maintenance Protocol (Every 2-3 Days):

This quick, manual procedure is the frontline defense against the risks described above.

Step 1: Lubrication of Chain and Gears.

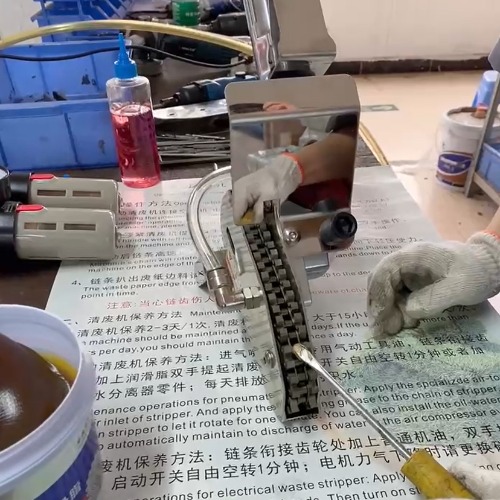

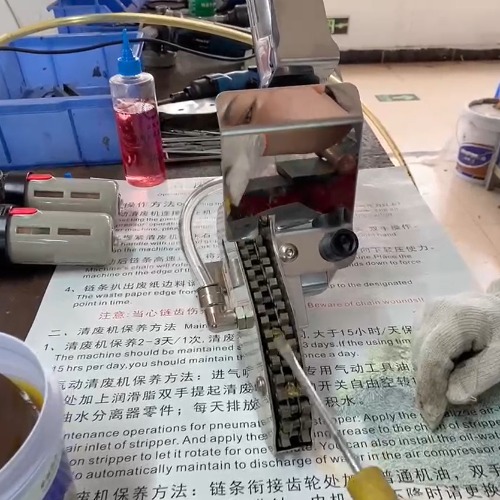

Locate the main drive chain and the exposed gears (specifically the upper and lower primary drive gears). Using a standard industrial-grade machine oil (not grease), carefully apply oil along the length of the chain while manually rotating the machine slightly to ensure the oil penetrates the pin and bushing interfaces. For the gears, apply a few drops to the meshing points of the teeth. This process replenishes the protective film, flushes out abrasive contaminants, and prevents the formation of rust.

Step 2: Lubrication of the Pneumatic System (Air Inlet).

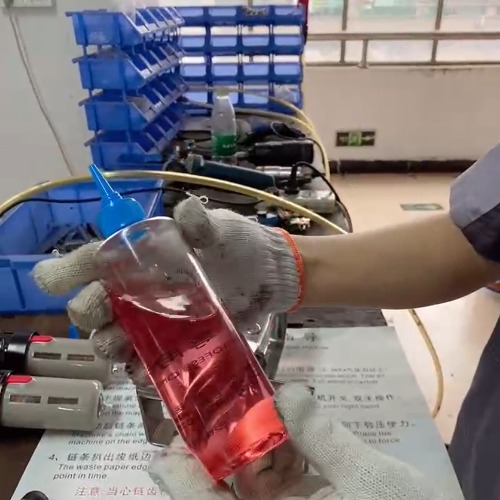

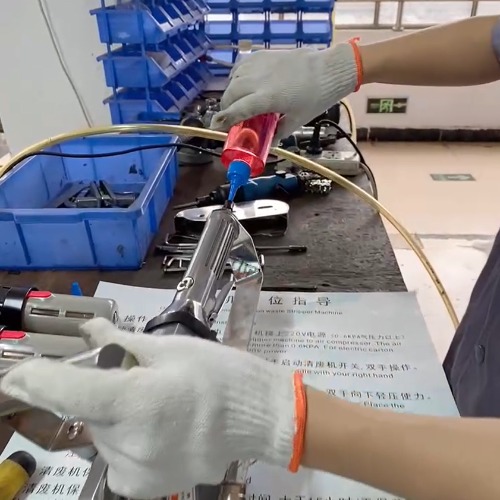

This step is critical for the health of the rotary union and all pneumatic valves and cylinders. You must use a dedicated pneumatic tool oil. Locate the machine's main air inlet port (where the air hose connects). Before connecting the air supply, add 2-3 drops of pneumatic oil directly into the inlet port. Then, securely reconnect the air hose. When the machine next cycles, this oil will atomize and be carried by the air stream, coating the internal surfaces of the rotary union, seals, and cylinders. This prevents corrosion, keeps seals pliable, and ensures smooth pneumatic operation.

Step 3: Dry-Cycle Purge.
After performing the lubrication steps, it is essential to distribute the new oil and purge any excess moisture. With the machine clear of any paper or obstructions, firmly grip the machine frame with both hands, lift it slightly to ensure no load, and initiate a dry cycle for 5 to 10 seconds. This action rotates the chain and gears, evenly distributing the fresh oil. Crucially, it also activates the pneumatic system, allowing the newly introduced pneumatic oil to coat the rotor and force out any accumulated condensate from the previous days of operation.

The Automated Solution: Integrating an Oil-Water Separator

While the manual protocol is effective, human schedules can be unpredictable. For guaranteed, consistent protection—especially for the vulnerable pneumatic system—the installation of an in-line Oil-Water Separator and Lubricator is highly recommended. This device automates the most critical aspect of maintenance.

Installation: The oil-water separator unit should be installed 1 to 2 meters downstream from the air compressor and directly before the air hose connection to the stripping machine. This positioning ensures air is treated immediately before it enters the equipment.
Automatic Operation: Once installed and filled with pneumatic oil, the unit works continuously. As compressed air flows through it, the filter stage removes solid particles and liquid water. The lubricator stage then injects a fine, regulated mist of oil into the air stream. This means every time the machine works, it is receiving a continuous, microscopic dose of fresh lubricant and dry air. It automates Step 2 of the manual process with perfect consistency.
Technical Reference: A typical unit combines a filter (removing water and particles), a regulator (ensuring stable pressure), and a lubricator (oil mist injection). It requires only periodic checks to drain the accumulated water from the filter bowl and to refill the lubricator reservoir—a task needed perhaps only once a month, depending on usage.

In conclusion, the stripping machine is a capital asset designed for performance and longevity. Realizing that full potential depends entirely on the care it receives. Adhering to a disciplined 2-to-3-day manual maintenance routine is a non-negotiable operational discipline that safeguards against chain breaks, gear wear, and rotor corrosion. Enhancing this protocol with an automated oil-water separator elevates your maintenance strategy, providing relentless, automated protection for the machine's pneumatic heart. This combined approach transforms maintenance from a reactive chore into a proactive strategy for maximizing uptime, protecting your investment, and ensuring that your production line—the lifeblood of your business—never skips a beat. The choice is simple: invest minutes in scheduled care, or pay dearly in hours of unscheduled downtime.
