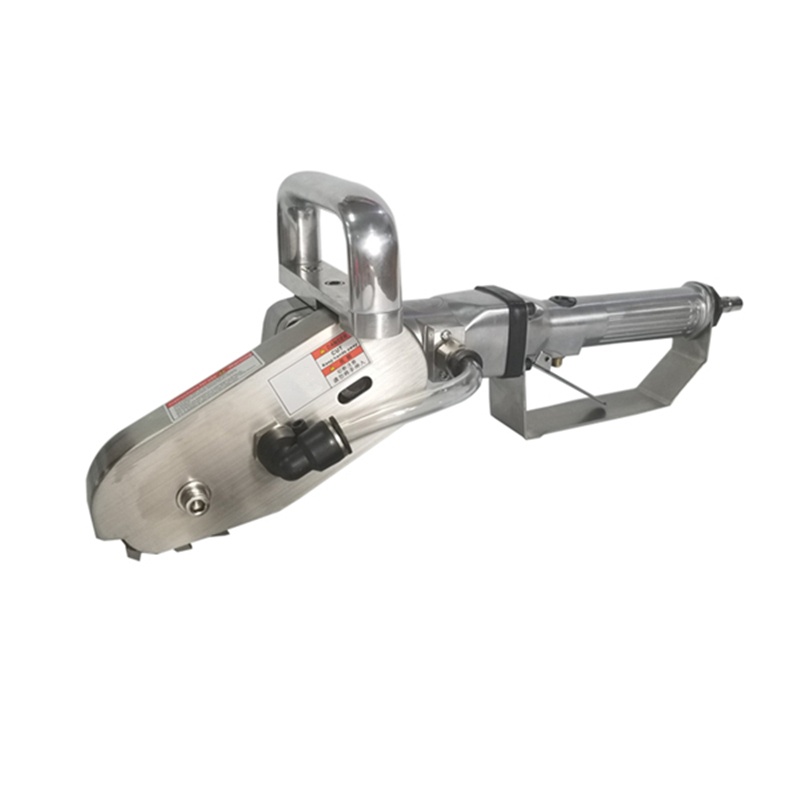

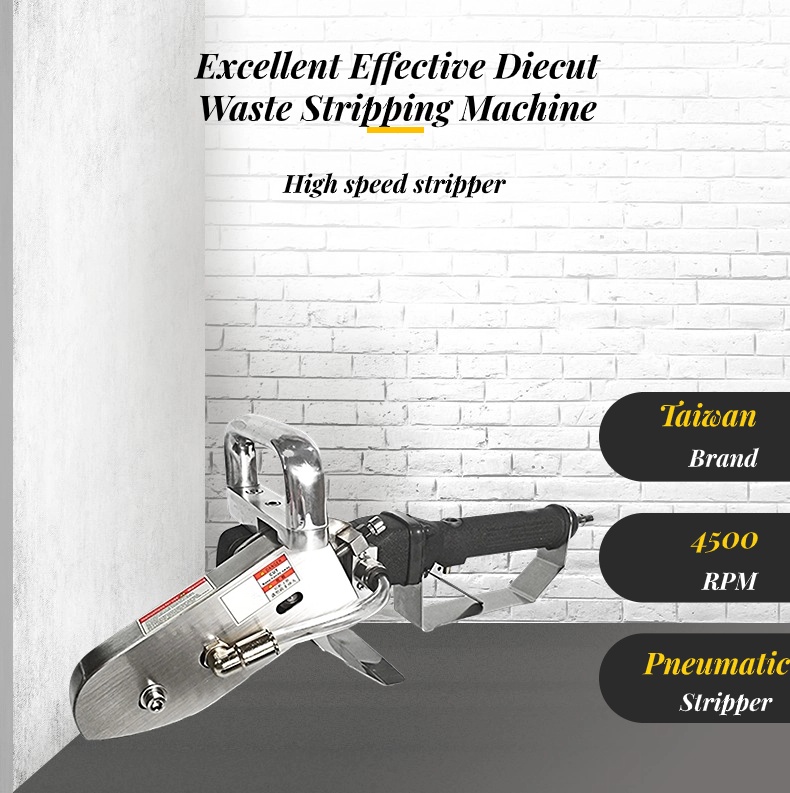

Pneumatic Cardboard Carton Box Waste Stripping Machine


Pneumatic Cardboard Carton Box Waste Stripping Machine

Type:air waste stripper


Chain:#3 chain

Revolution:4500 RPM

Working pressure:6~8KG

Motor:Taiwan Brand

Paper type:it suitable for all kinds of paper, especially for greyboard paper, corrugated paper and so on

  • Details

Waste Stripper Remover Trimming Tool / Pneumatic Stripping Machine / Carton Stripper/carton-waste-stripper/BOBST waste strippers

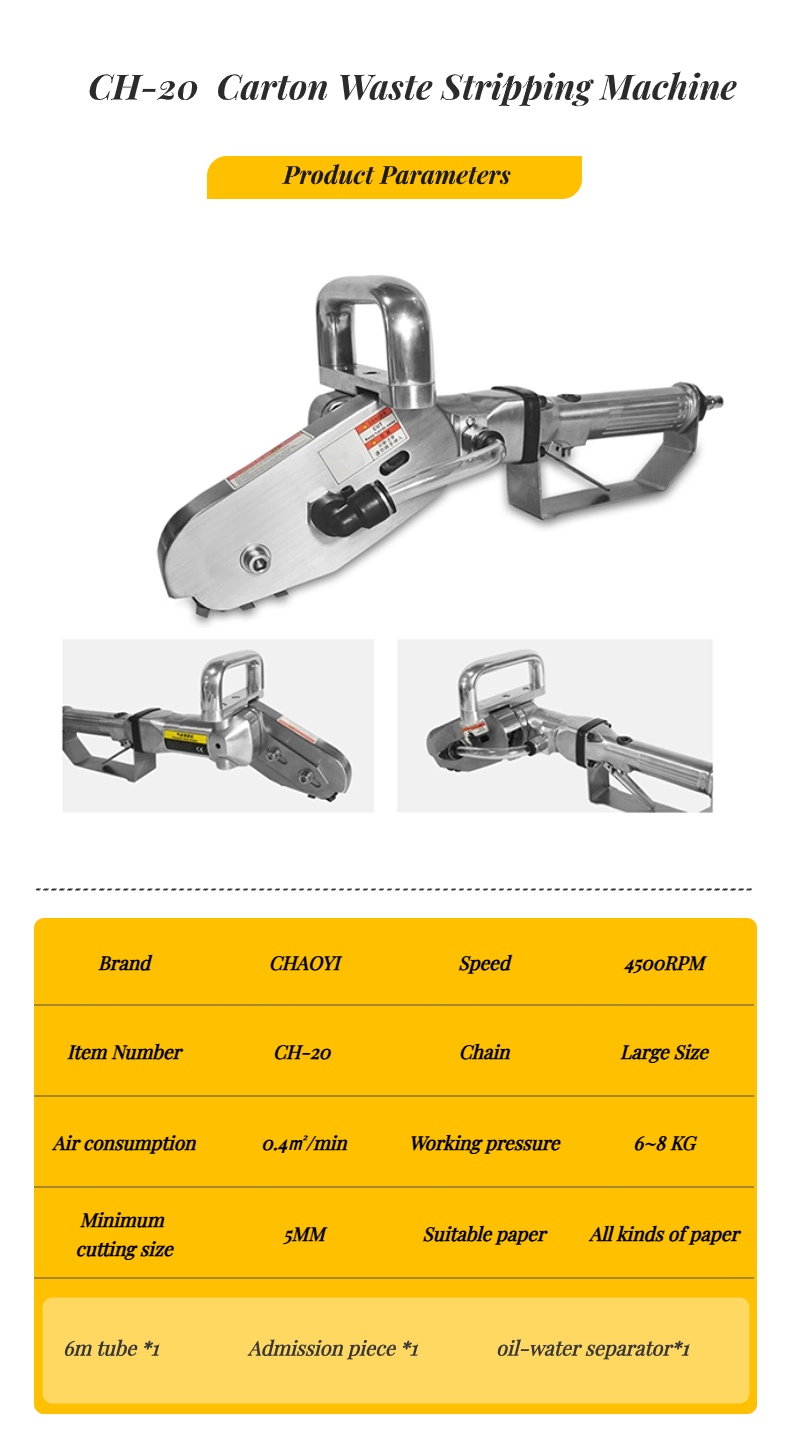

Item Number



Pneumatic stripper




4500 turns /min


#3 with 18 cogs (medium size)

Air consumption


Working pressure

6~8 KG

Net weight

5.5 KG

Minimum cutting size


Suitable paper

all kinds of paper. Efficiency will be higher for greyboard paper, corrugating medium paper and so on.

Gross Weight


Package Dimensions


The product is stripped evenly, with no hammer damage marks. It saves time and improves operator comfort

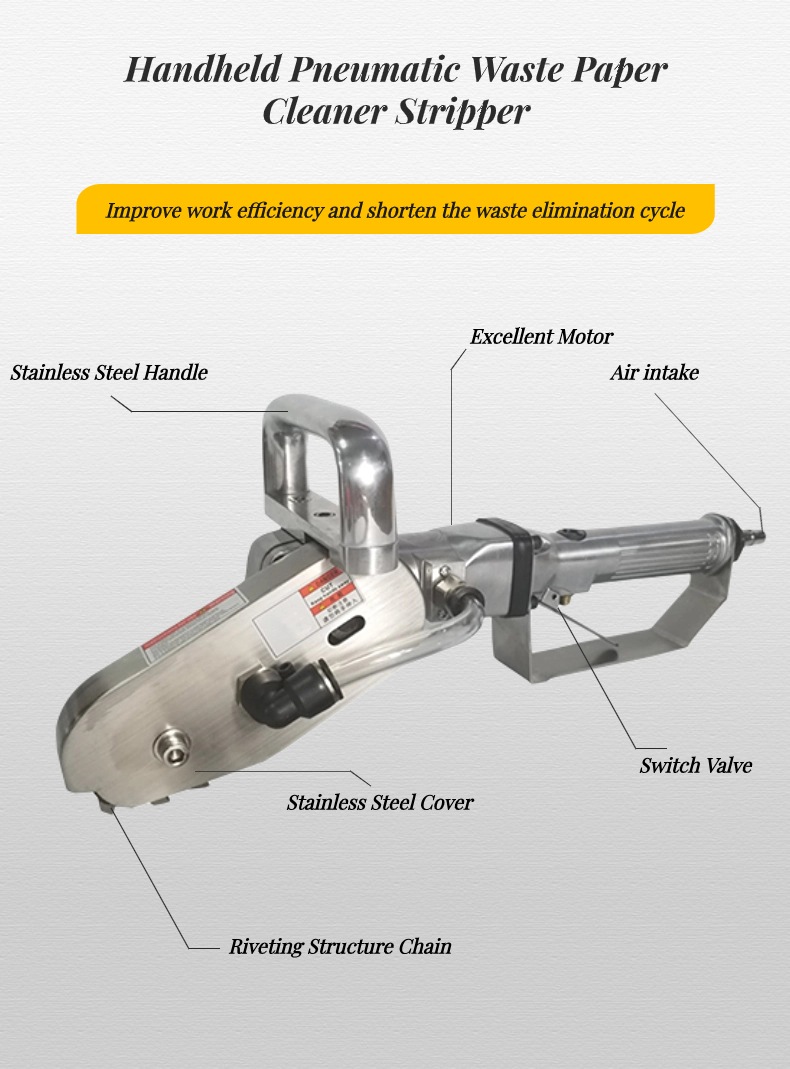

The waste stripper is equipped with a multi-tooth chain driven by a compressed air motor. Its teeth do not cut the paper, they catch it. Your operator simply needs to hold the device, while the carton-waste-stripper takes care of the rest-a simple procedure, and incredibly quick. Overall, it strips up to 10 times quicker than by hand or hammer.

Operating Instructions

1, Connecting the pneumatic carton waste stripper machine to air compressor. The air compressor operating pressure should be more than 0.6 KPA. For electric carton stripper machine, please connect it to the 220V power.

2, Clutch handle with left hand grip and Grip the motor handle with your right hand. Turn on the machine and work by both hands.

3, Machine's chain will rotate by high speed after turning on the machine. Place the machine on the edge of the waste paper and gently press the hands down to force

4, The waste paper edge from the chain should be cleaned up to the designated point in time.

Warm reminder: Beware of chain wounds

Maintenance Method

1,The machine should be maintained after using 2-3 days. If the using time is more than 15 hrs per day, you should maintain the machine once a day.

2, The maintain operations for pneumatic stripper machine: Apply the specialized air-tool oil to the air inlet of machine. And apply the regular engine oil to the chain of machine. Then turn on the machine to let it rotate about one minute. You can also install the oil-water separator to automatic maintenance to discharge of water in the air compressor every day.

3, The maintain operations for electric stripper machine: Apply the regular engine oil to the chain of machine and Lift the machine with both hands. Then turn on machine to let it rotate by one minute. Please replace the carbon brush when the motor power drops.

For details, please read the instructions of machine.

Summary of the function

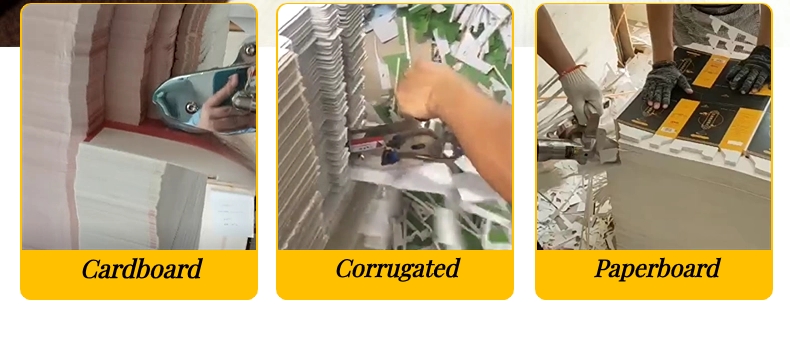

Scope of application: This clear the waste machines are used cardboard ,corrugated paper and fine corrugated paper in the printing of the profession .The function is clear out the waste side .Apply to the paper of 150g500g.

Characteristic of the function

1. FunctionThis clear the waste machines clear out the waste side are through the motor of pneumatic ,it is spurred on the chain and tooth.

2. Characteristic
1 This machine is very quick of the equipment, than the work efficiency of power has gone up 510 times at least.

(2) The machines are structural concise, the weight is light and portable, it is simple and easy to use.

(3) The motive force is adopt the pneumatic, reliable life grows and safety, the qualified of fire prevention.

(4) The chain are made of steel, the hardness is very high, and durable.

Parameter of the technology

1. Barometric pressure 0.63Mpa

2. The compressor of air needed over 4 KW.

Photos of HS-882S

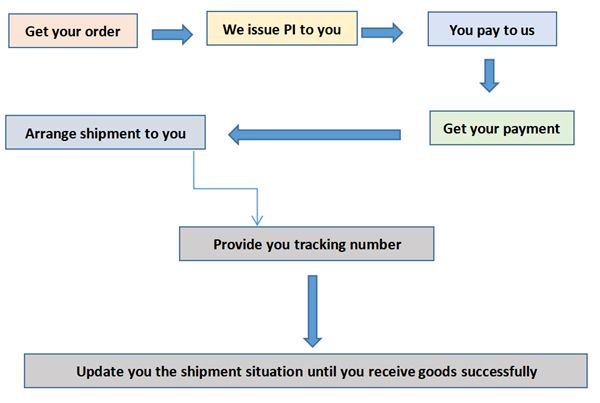

Lots of available carton-waste-strippers in stock are waiting for you, we will send out goods at once after getting your payment.
