Carton Box Waste Die Cut Stripper Stripping Tool

Products

Carton Box Waste Die Cut Stripper Stripping Tool

Type:electric waste stripper

Weight:5.5KG

Chain:#2 chain

Revolution:4500 RPM

Working pressure:6~8KG

Motor:Taiwan Brand

Paper type:it suitable for all kinds of paper, especially for kraft paper / corrugating medium paper

  • Details

Carton Box Waste Die Cut Stripper Stripping Tool





TECHNICAL SPECIFICATIONS


Item Number

HS-880

Type

Pneumatic stripper

Color

Black and Silver (you could choose the color you want )

Revolution

4500 turns /min

Chain

#2 with 18 cogs (large size)

Air consumption

0.4㎡/min

Working pressure

6~8 KG

Net weight

3.5 KG

Minimum cutting size

5MM

Suitable paper

all kinds of paper. Efficiency will be higher for kcaft paper, greyboard paper, corrugating medium paper and so on

Gross Weight

6.0KG

Package Dimensions

490*170*240mm



PRODUCT DESCRIPTION

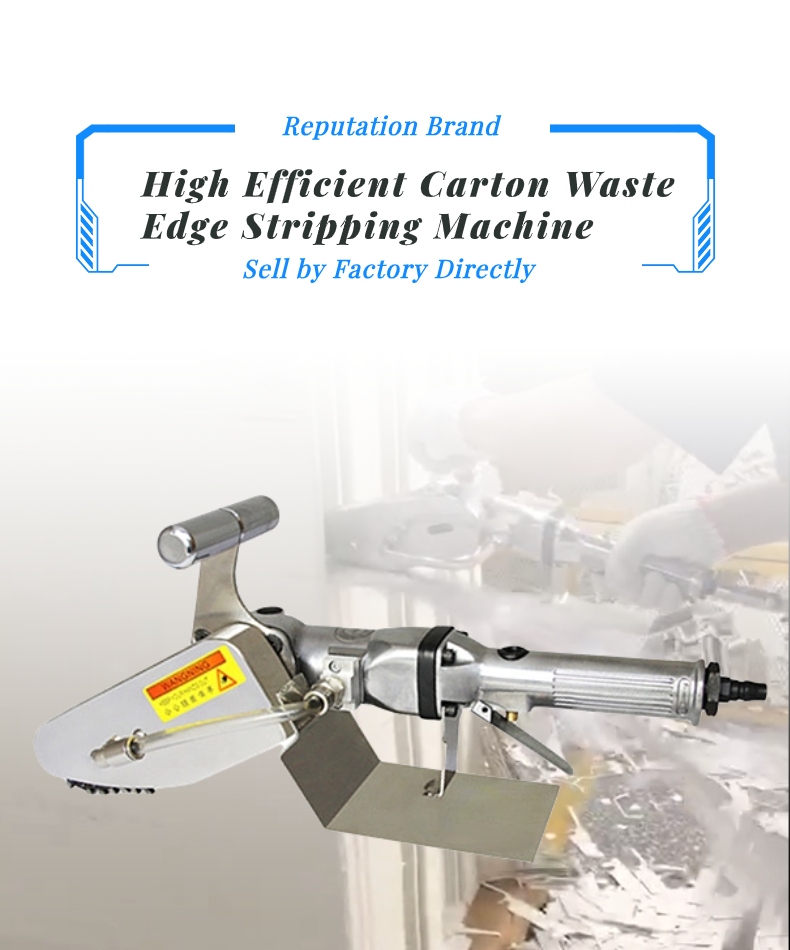

The compressed air driven HS-880 carton-stripper is our standard stripper and our bestseller.

More than 95% of our customers worldwide use and prefer this handy type and they are very satisfied with it. The HS-880 is particularly well suited for normal waste. This device is driven by a pneumatic famous motor. Our pneumatic type HS-880 is very robust and very low-maintenance.


For the main processing of corrugated cardboard, we also offer our special medium chain for this device. All pneumatic types are also available with a two-hand safety system.


For the HS-880, we will provide you the automatic maintain unit oil-water separator to ensure the stripping tool smoothly work all the time. And it is absolute necessary to use the unit to protect the air driven motor.


Field of Application & Work Stations for HS-880S Carton-Stripper
HS-880 is designed for the sole purpose of clearing waste of carton boxes.
HS-880 is a pneumatic manual die-cut waste stripping device. After connecting to air pump, press the rotary switch for normal operation.
HS-880 is to be installed and operated in a post-processing waste stripping area.


HS-880 Carton-waste Advantages

• Powerful pneumatic motor guarantees smooth stripping.

• Solid and rigid steel construction.

• Stripping waste with maximal efficiency.

• Extremely safe, easy and comfortable to operate.

• The hardened-steel stripping wheel guarantees longer lifetime


Product Features

HS-880 stripper is a high- efficient manual tool ,compared with the traditional stripper’s method by hammer, stripper could improve the speed at least above 5-10 times.
• Compact structure, light-weight design and easy operation; male or female operator could handle it through a simple training.
• The HS-880 stripper’s power cause by air motor, thus safe operation and long productive life.
HS-880 Stripper’s tooth chain with high strength alloy steel which using advanced heat treatment technology, high hardness, strong abrasive resistance and long working life.


Product Functions Explanation
• This device HS-880 is specially designed for the universal use of removal of large & small segment waste from die cut sheets with no damage to the carton blanks, which can improve the factory productivity.
• Pneumatic driven, environmental friendly, safe and reliable
• Conforms to Oriental hand shape, which can be moved flexibly and lightly.
• Scientific design stripping wheel, effectively reduces the unreasonable contacts with paper
• The powerful pneumatic motor enables stripping to be handier
• Enhances the efficiency of stripping greatly, reduces stripping personnel, and saves time

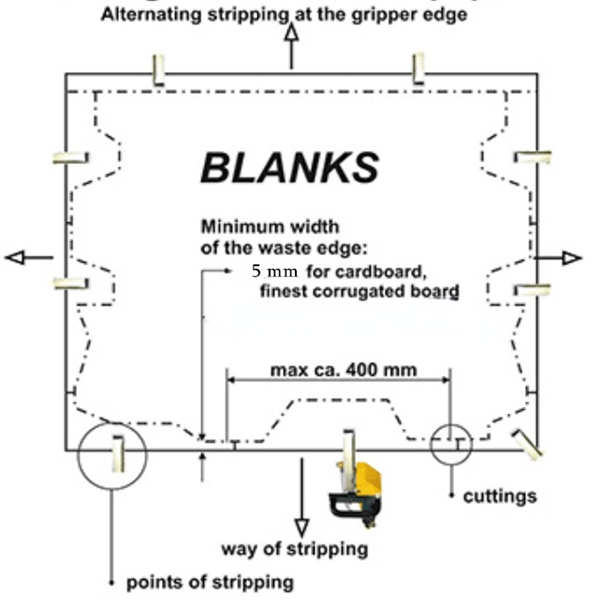

Principle picture for segments of waste stripper

The outside trim must be cut into sections no large than 400mm long. The lenght is dependent on the number and the depth of cut-outs as well as the shape of sheet. The smaller the number of the nicks, the faster the stripping operation will go.


Photos Show








Order list

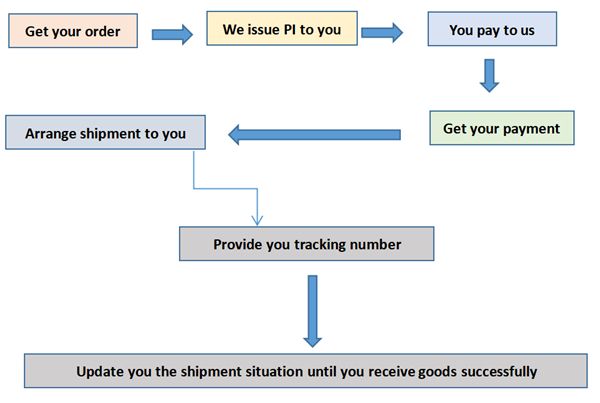

Order Steps

Precautions for the use of pneumatic waste removal machine:

1. Waterproof:

Please install the "oil-water separator" according to the manufacturer's requirements. pay attention to the drainage in the oil-water separator and add pneumatic tool oil in it. more details, please see below picture.


2. Cleaning:

, the internal cleaning of the machine: pour "kerosene or anti-rust oil or pneumatic tool oil" into the air inlet every day, then turn on the stripper and let it run idly, it clean the internal parts automatic when it is idling. please note, add the pneumatic tool oil is for maintain, kerosene and anti-rust oil is for cleaning.

, External cleaning: After get off work every day, please use an air gun to blow out the paper scraps in the machine shell, chain gaps and other places.

3. Air pressure requirements:

Above 6-8 air pressure, the actual power of the air compressor is above 3.5KW, and the air compressor needs to be drained regularly.

4. The process of removing waste should be done by pressing down with both hands gently to the end. Do not use the stripper to beat the waste paper to remove waste.

5. Safety precautions:

, Operator's safety: Please operate the waste stripper with both hands, not one-handed, to prevent the chain from hurting people.

, the safety of the waste stripper: do not let stripper to touch wooden bottom plate or the hard iron objects when it is working, otherwise the chain will be broken.

6. Try not to let the machine work continuously, let it rest for one minute after using 1 hour.
