Die Cutting Angle Portable Nick Grinder Tools Hand Power Nick Grinding Machine Die-cut Grinding Tool Pneumatic Angle Nick Grinder Die Cutting Angle Portable Nick Grinder Tools Hand Power Nick Grinding Machine Die-cut Grinding Tool Pneumatic Angle Nick Grinder Die Cutting Angle Portable Nick Grinder Tools Hand Power Nick Grinding Machine Die-cut Grinding Tool Pneumatic Angle Nick Grinder Die Cutting Angle Portable Nick Grinder Tools Hand Power Nick Grinding Machine Die-cut Grinding Tool Pneumatic Angle Nick Grinder

Die Cutting Angle Portable Nick Grinder Tools Hand Power Nick Grinding Machine Die-cut Grinding Tool Pneumatic Angle Nick Grinder

  • Product No.:HS-N71
  • Price:negotiate
  • type:Box cutting
  • Weight:0.8KG
  • Revolution:35000 R/ Min
  • Working pressure:0.6~0.8Mpa
  • Motor:Grinding wheel type:0.3-0.5-0.7-0.8-1.0-1.2-2.0
  • Online Inquiry




Die Cutting Angle Portable Nick Grinder Tools Hand Power Nick Grinding Machine Die-cut Grinding Tool Pneumatic Angle Nick Grinder

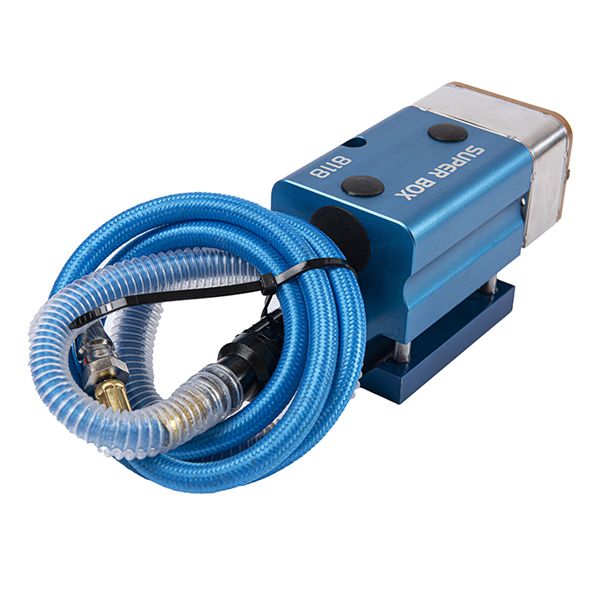

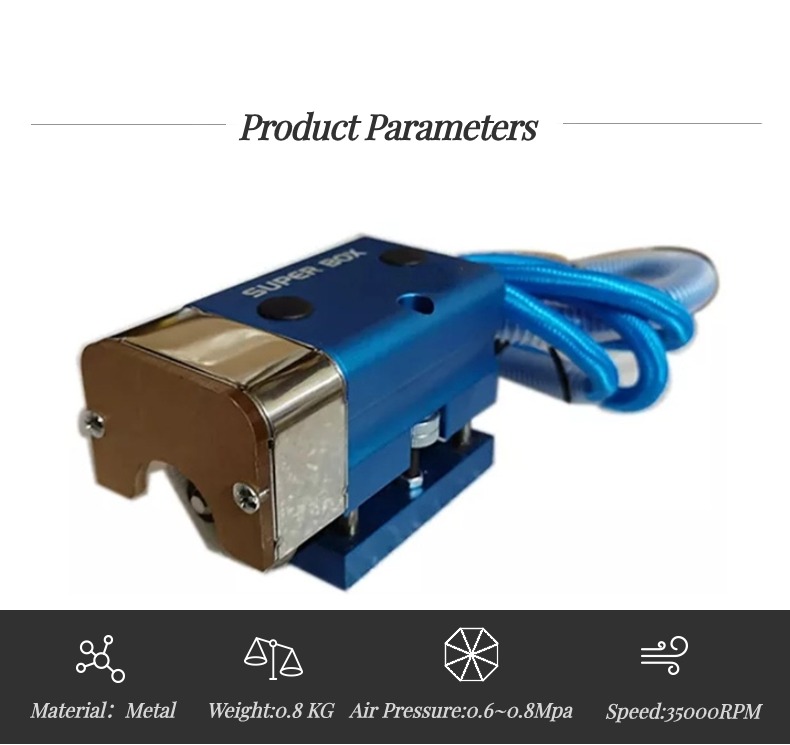

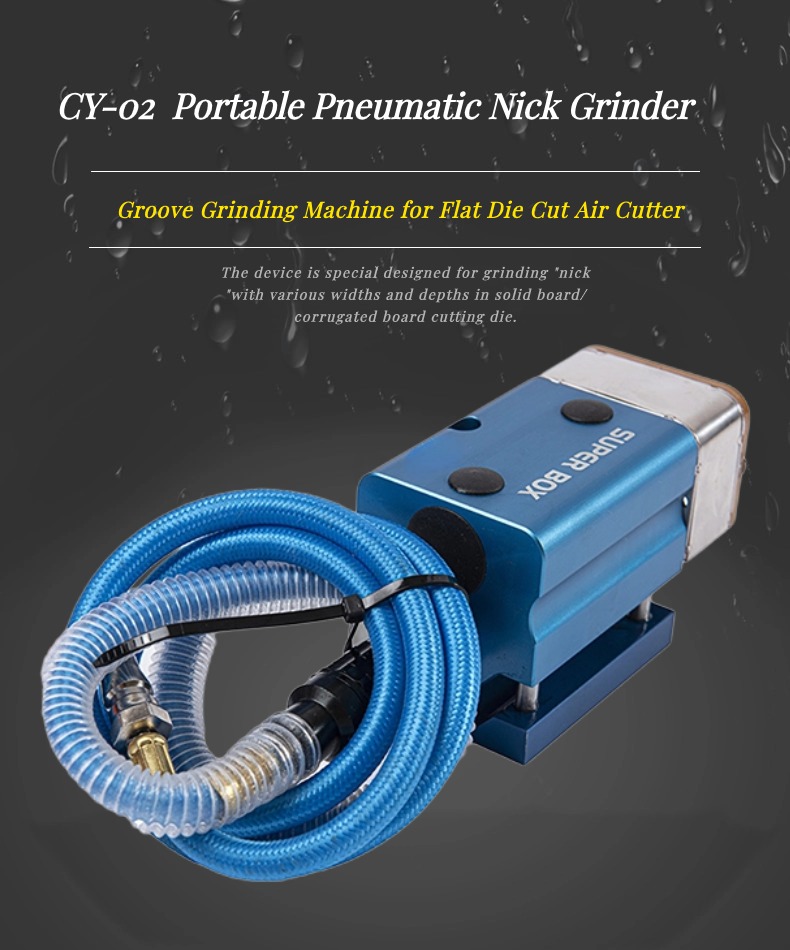

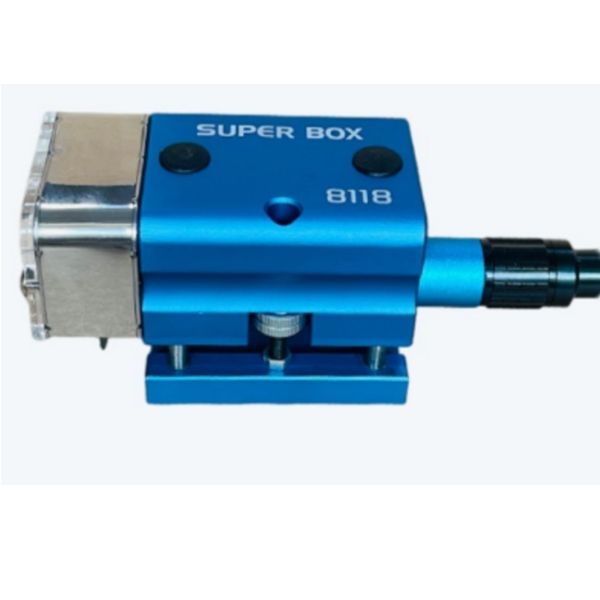

PRODUCT SPECIFICATION

Average Air Consumption

4CFM

Maximum Torque

Adjustable

No-Load Speed

35000RPM

Color

Blue

Automatic Grade

Semi-Automatic

Packing

1set/box

Net Weight

0.8kg

Usage

Die cutting Nick Grinding

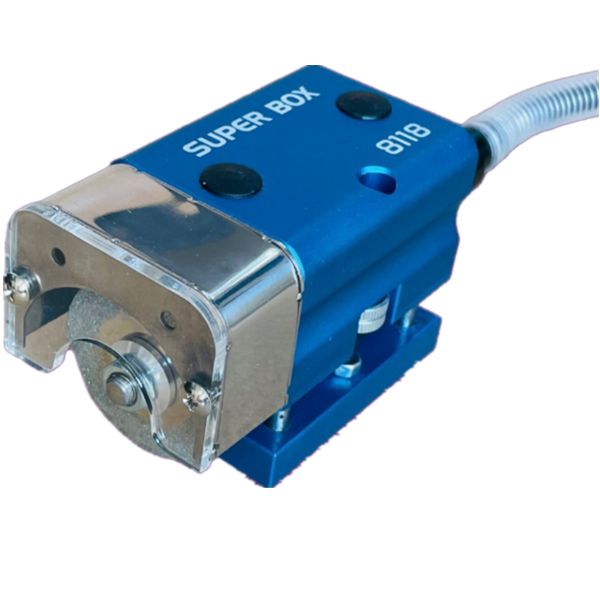

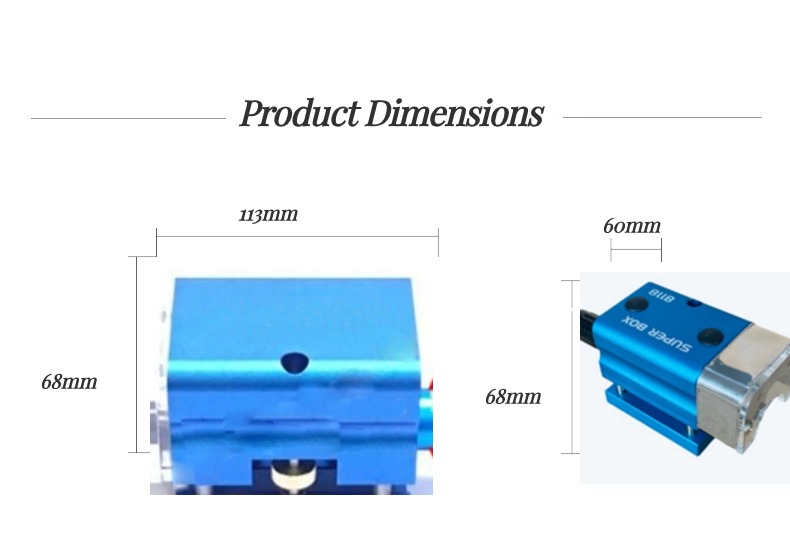

Dimension

28*14*15CM

Inlet pipe diameter

8*5mm

Working pressure Mpa

0.6-0.8

Air pipe length

1.2+6M

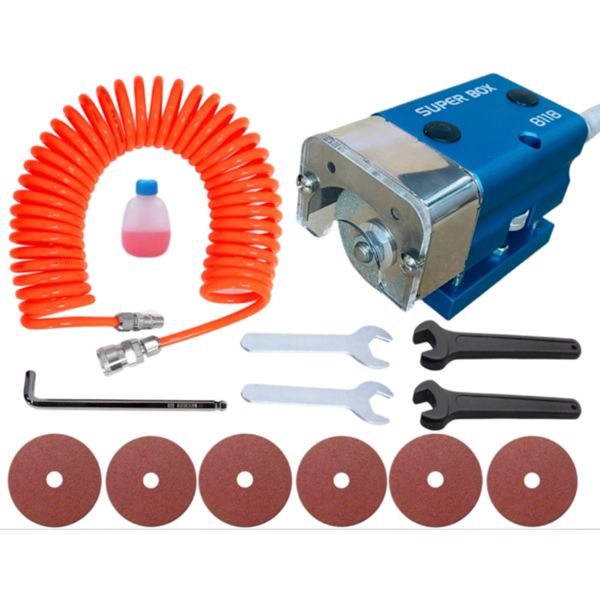

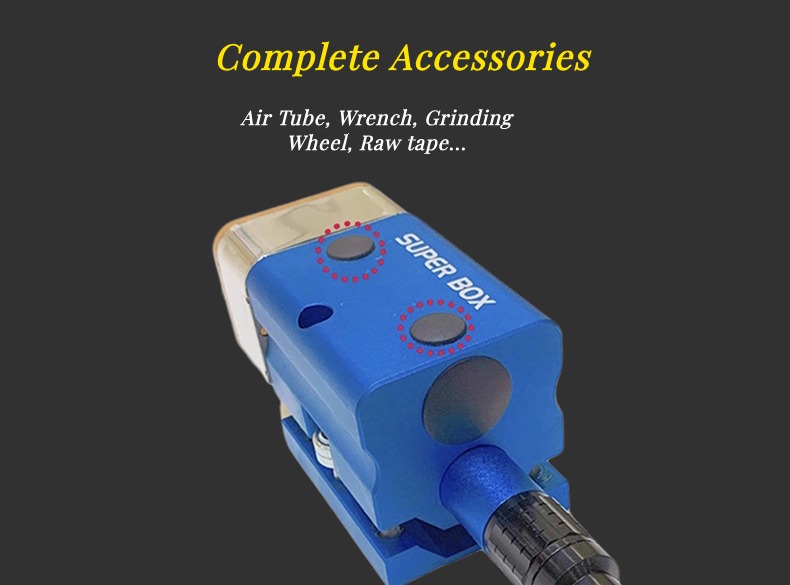

Delivery tools

4pcs

Free grinding wheel per set

10pcs

Warranty service

6 months


ADVANTAGE
1. Versatile pneumatic powered nicking grinder produce clean, perpendicular nicks at consistent&adjustable depths.
2.Operating with less noise and vibration
3.Steady position of the devices on die-boards due to 4 removable pins below the base.
4. Nicks width from 0.2mm to 2.0mm by using different grinding distance thickness.


MANUAL INSTRUCTIONS

1.Check the air source, air pressure stable or not

2.Check the machine screws etc.

3.Change the grinding wheel according to needs, adjust the depth valve(If not use high precision position, pls lock the depth valve to the rock bottom position, which will do the nick grinding jobs according to the pressure power)

4.Wear gloves, protective glass, masks

5.Connect to air source( suggest to hang up the air hose)

6.Pls drop 3 drops pneumatic oil to the air inlet, plug in the air hose. Rotate to right to open the grinder. Then slowly idle for a few seconds, rotate to left to close

7.Put the wooden die cutting board smoothly on the table(suggest not to use sponge rubber before nick grinding, as resistance increases)

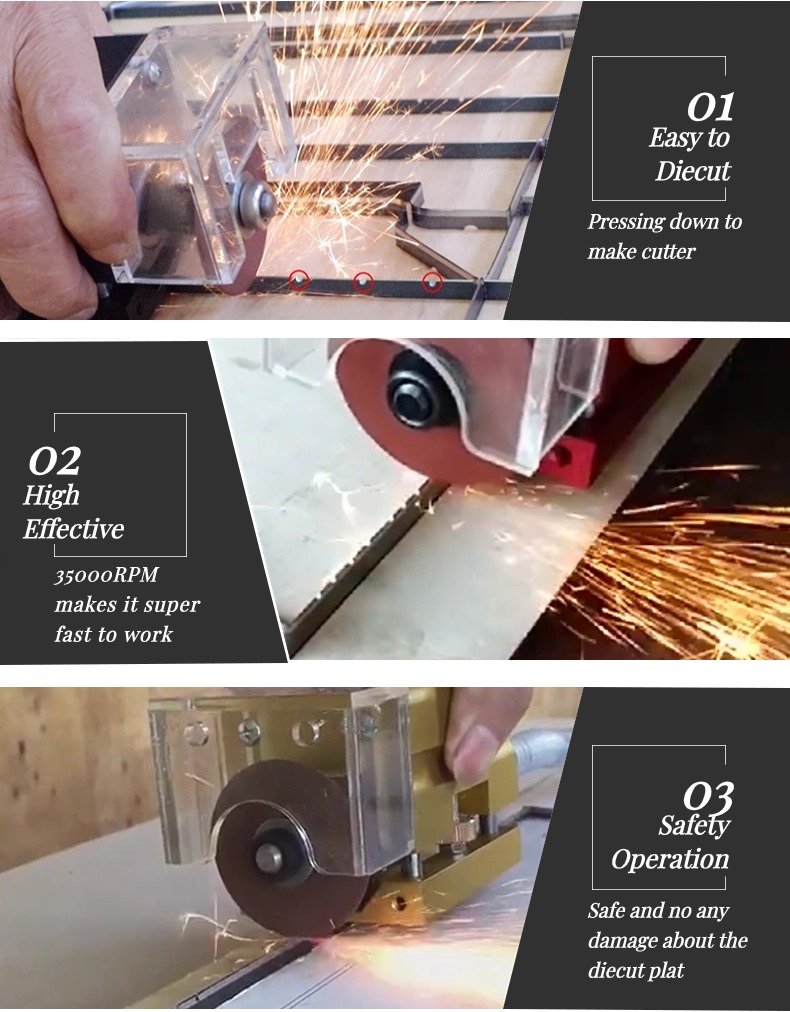

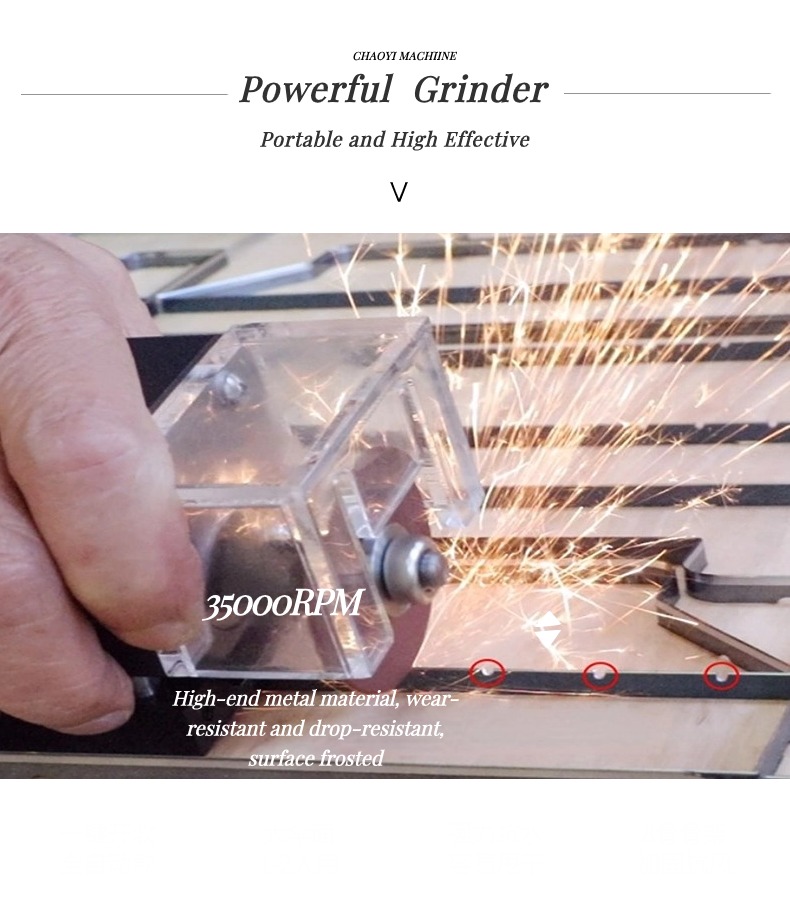

8.Rotate to right to open the grinder, increase the speed. Use thumb and first finger to hold the machine when the rotation speed gets stable. Then put the machine in the front side of the steel rules, move it to the grinding position(use wheels to adjust the position) and gently press the machine to start nicking. Move stably in turn. Pay attention that must gently press and handle

9.After finish the nicking job, rotate to left to close. Unplug the air hose and use 3 drops pneumatic oil to the air inlet, then plug to the air hose and open the grinder to idling for a few seconds. After that close the air source, clean the machine body and keep in proper position.


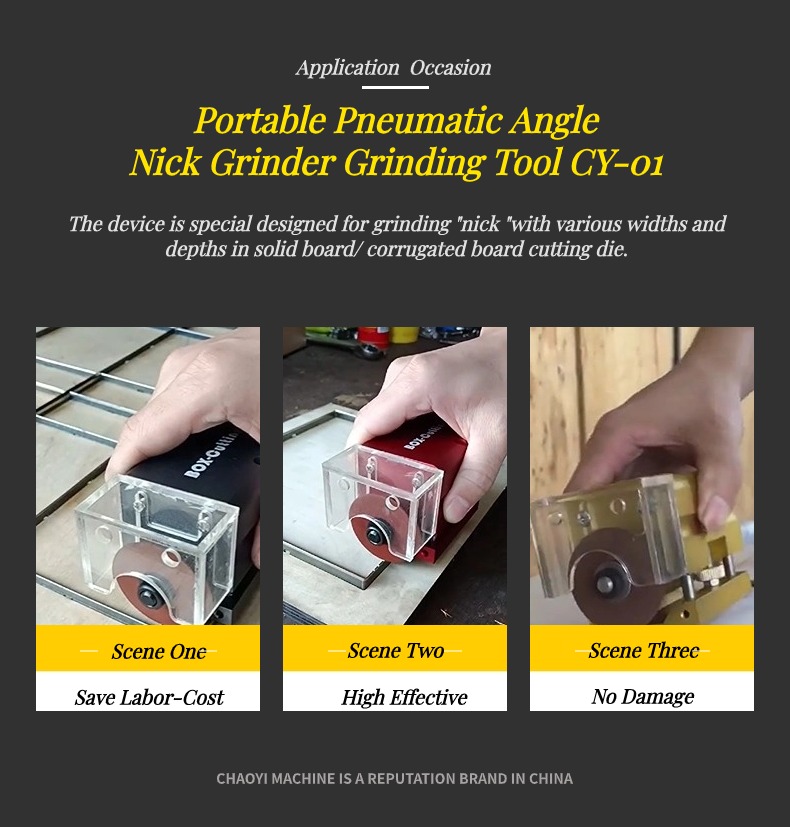

APPLICATIONS

It should be installed and operated at a suitable working table or die-cutting machine in workshop.


INSTRUCTION FOR OPERATION

1. When installing the grinding wheel ,put it between two brass-sleeves on the transmission-shaft,then use spanner to fix the transmission-shaft and screw the nut.

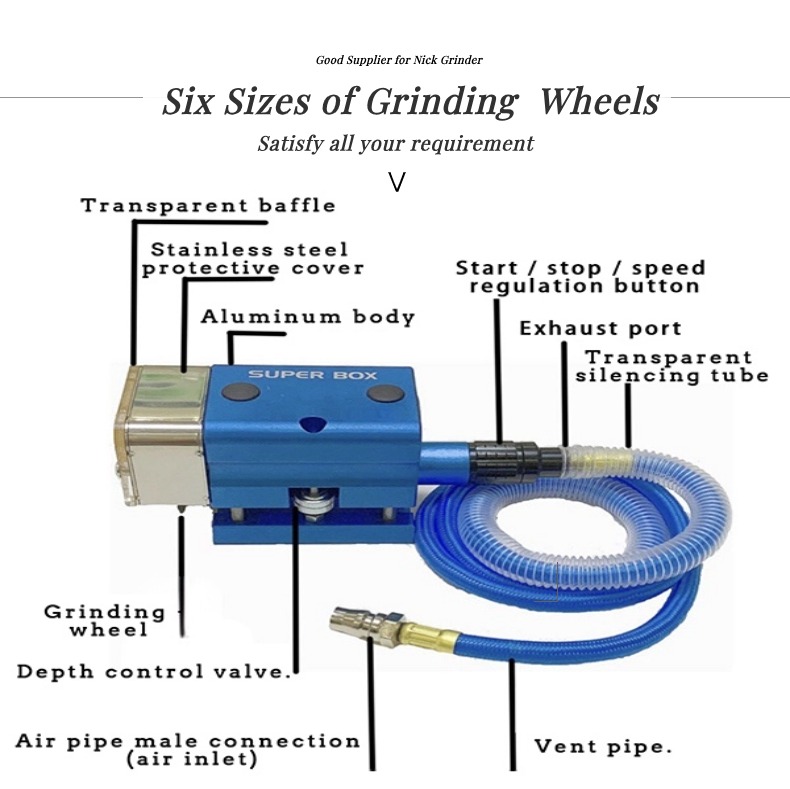

2. Different depth of nicks can be obtained by adjusting the control screw:

Turning the screw clockwise will reduce the depth of nick,contrary,the depth will increase.

3. The depth of nick should be determined by cutting-dies ,otherwise,will cause abnormal wear on the grinding wheel.

4. The switch on the tail of the device can control the speed of motor,and it can control the mothor start or stop as well.

5. When grinding nicks,use locating-device to position the machine on the top of cutting rules,then press the grinding wheel towards the blade of cutting rules stably and quickly .

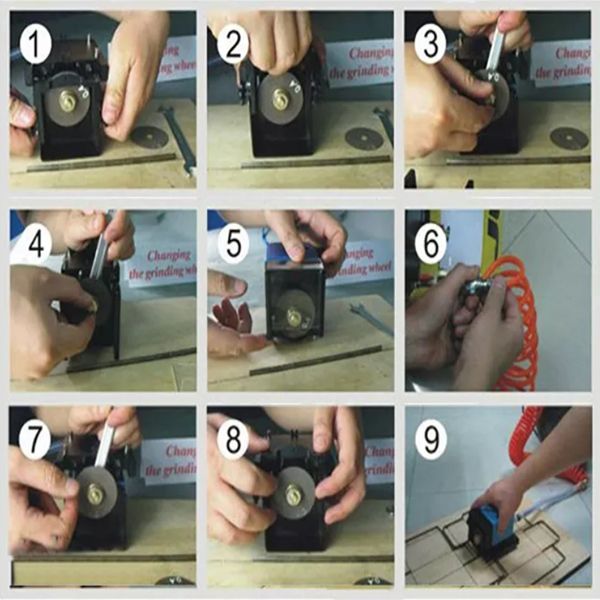

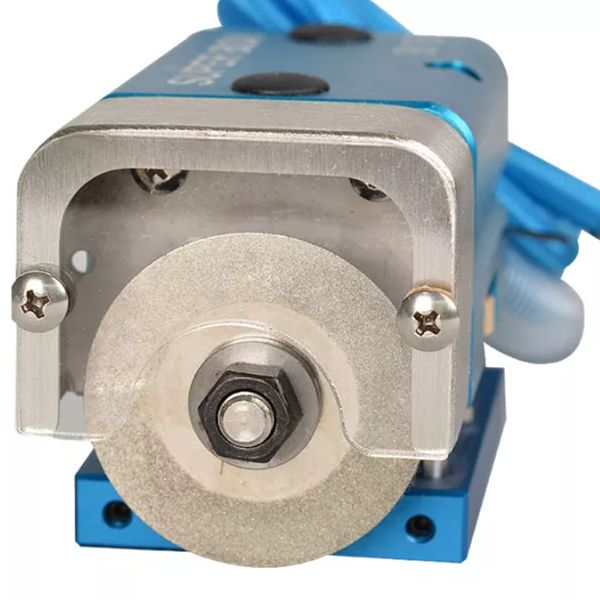

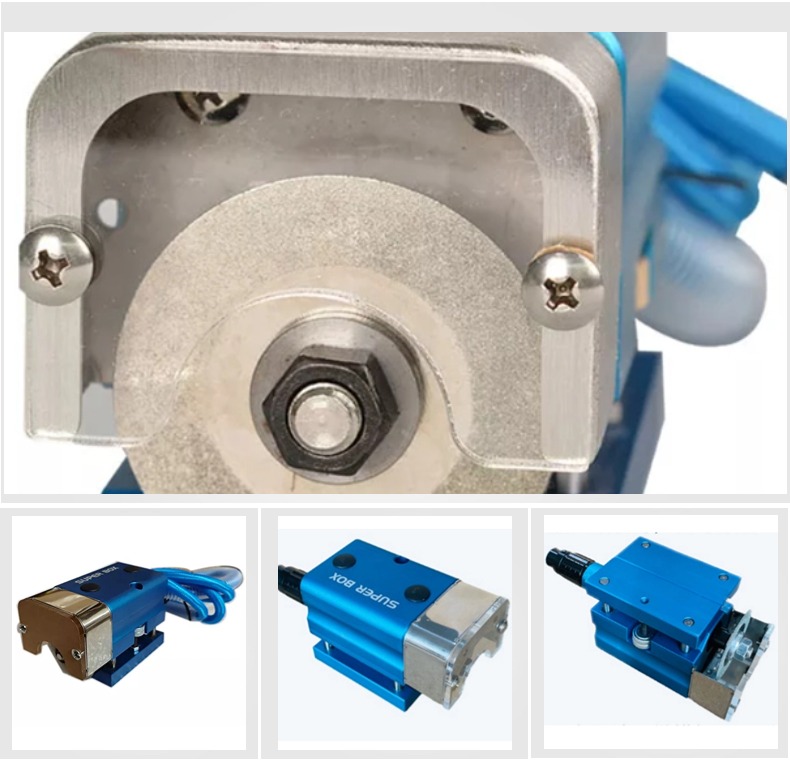

HOW TO REPLACE GRINDING WHEEL

1, Hold the spindle with a small open-ended wrench and hold it.

2, Remove the nut with a large open-ended wrench.

3, Take out the clamp and grinding wheel.

4, Replace the new grinding wheel, put back the clamp and tighten the nut.


HOW TO CHANGE THE MOTOR

1, Remove the protective cover and grinding wheel chuck.

2, Open the plastic cover on the top of the machine body.

3, Loosen the two fixed screws inside.

4, Extract the motor from the rear of the machine.

5, Install the new motor and adjust it to proper position, then fix the two screws.

6, Pay attention: Do not fix too hard to avoid the deformation of the motor cover.


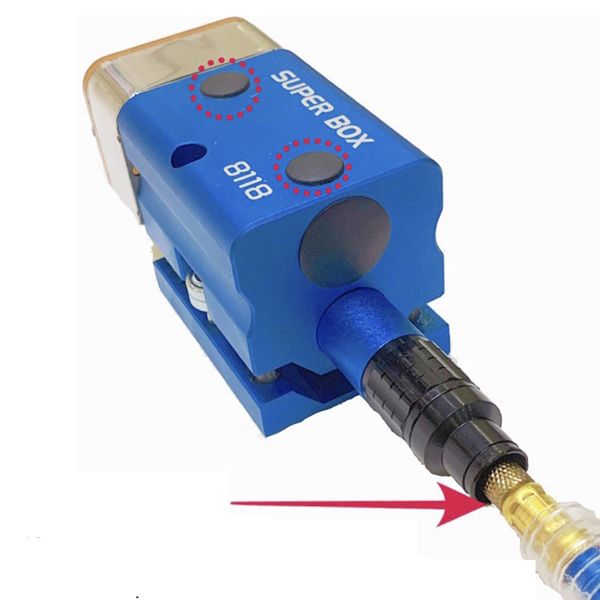

HOW TO CHANGE THE AIR HOSE

1, Use the pliers to open the threaded joint.(Do not damage the inner joint of the motor.)

2, Use proper glue or tape to the new air hose connecting point.

3, Screw the joint and fix firmly.

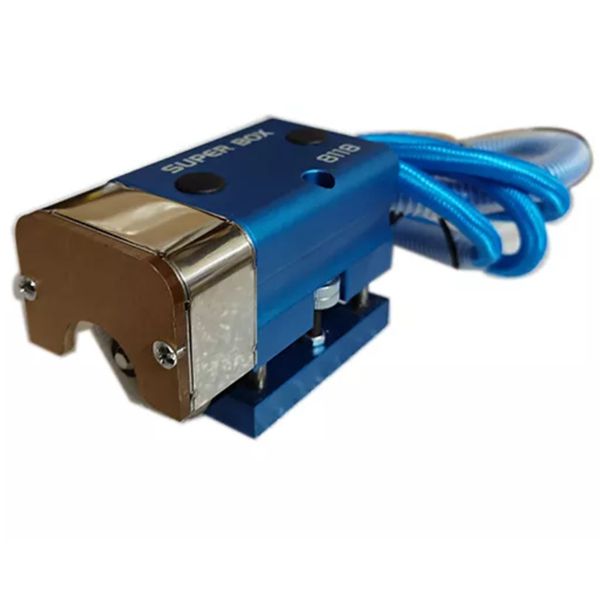

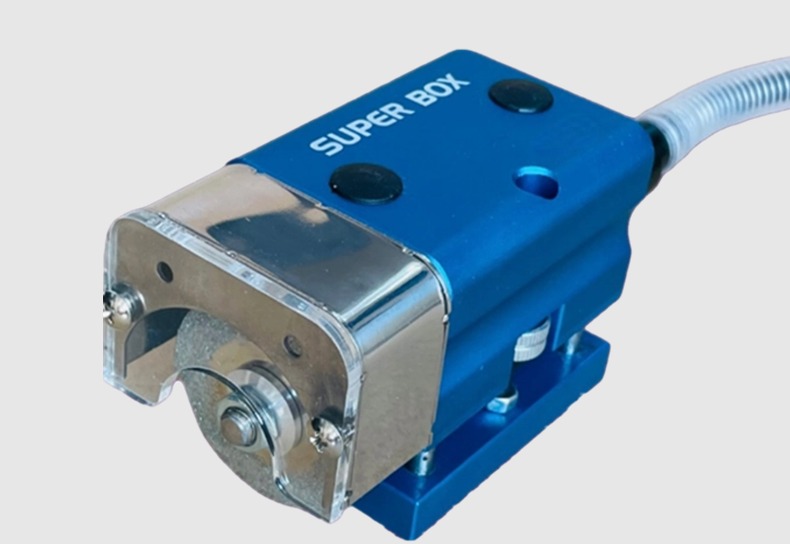

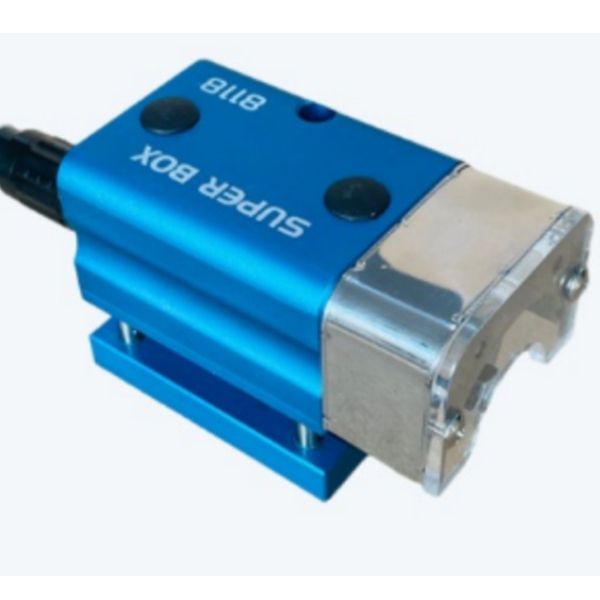

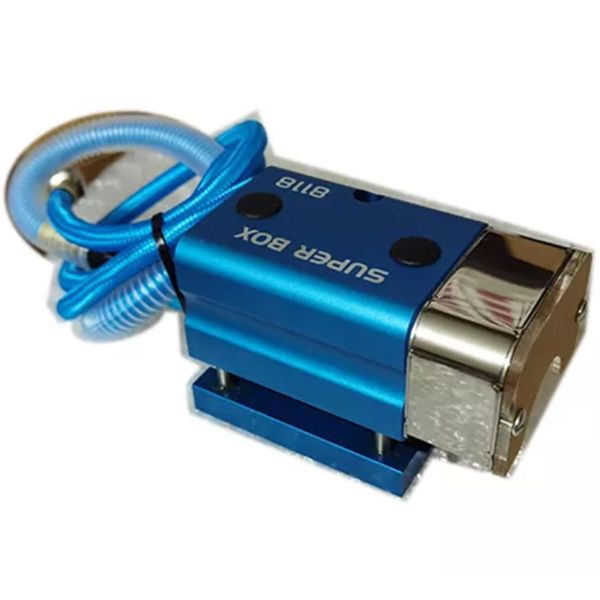

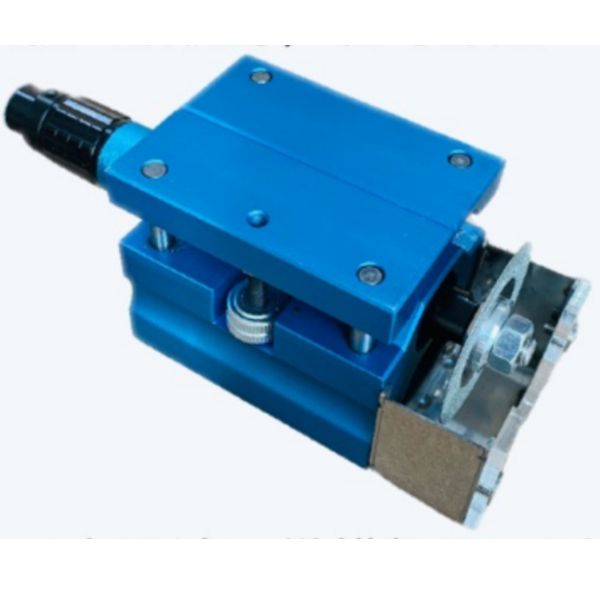

PICTURE SHOW
